Crystal Series Outdoor Transparent LED Screen P5.2-10.42 with
1000×500mm Cabinet 3 Years Warranty IP65 9000nit
Technical Specifications
| Parameter | Value |
|---|
| Model | P5.2-10.42mm |
| LED Type | SMD2727 (1R1G1B) |
| Pixel Pitch | 5.2-10.42mm |
| Unit Size | 1000×500mm |
| Resolution | 18,432dots/㎡ |
| Brightness | ≥5500nit |
| Weight | 14KG/㎡ |
| Viewing Angle | H120°/V120° |
| Protection Level | IP65 |
| Refresh Rate | 3840Hz |
| Working Temperature | -20℃ to 50℃ |
| Lifespan | ≥100,000 hours |
| Warranty | 3 years |
Crystal Series Outdoor Transparent LED Screen Key Advantages:
- Ultra-Slim Design – 60mm thin cabinet, perfect for shop windows or
glass curtain walls. Ideal for point-of-sale promotions and brand
awareness campaigns.

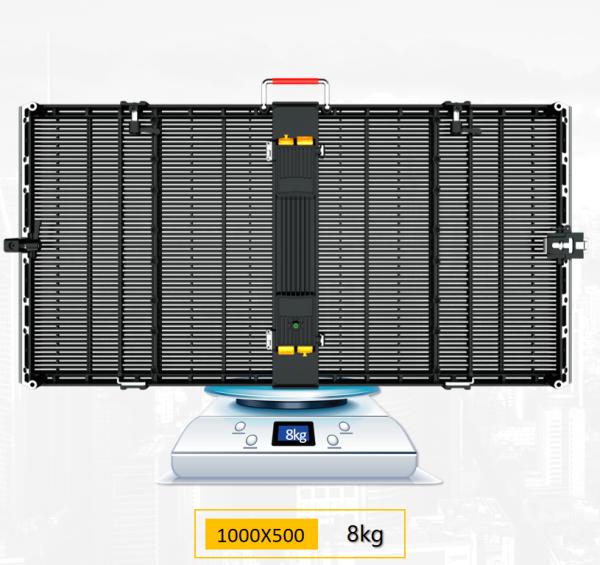

- Exceptionally Lightweight – Standard 500×1000mm cabinet weighs only
5.5kg, reducing installation load.
- High Transparency – Over 53% transparency rate, maintaining natural
light penetration without blocking the view.
- Energy-Efficient – Power consumption is just 1/3 of conventional
LED displays, eco-friendly and cost-saving.
Easy Installation – No pre-built support structure required.
Space-saving design minimizes impact on shop window aesthetics. - Superior Performance – Equipped with S-PWM driver IC, featuring
high refresh rate, rich grayscale, high brightness, and ghost-free
display.
- Flexible Connectivity – Supports wired, WiFi, 3G, and 4G
connections for seamless content updates.

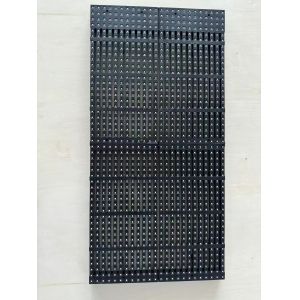

Outdoor Transparent LED Screen P5.2-10.42 Detailed:
- Viewing Distance: ≥5m
- Scanning Mode: 1/4 Scan
- Module Weight: 0.9kg/piece
- Product Weight: 14kg/㎡
- LED Driving Mode: Constant Current Driver YM9866
- Angle Specification: Seamless splicing within 2°, maximum gap of
3.36mm at 45°
- Module Thickness: 14.5mm

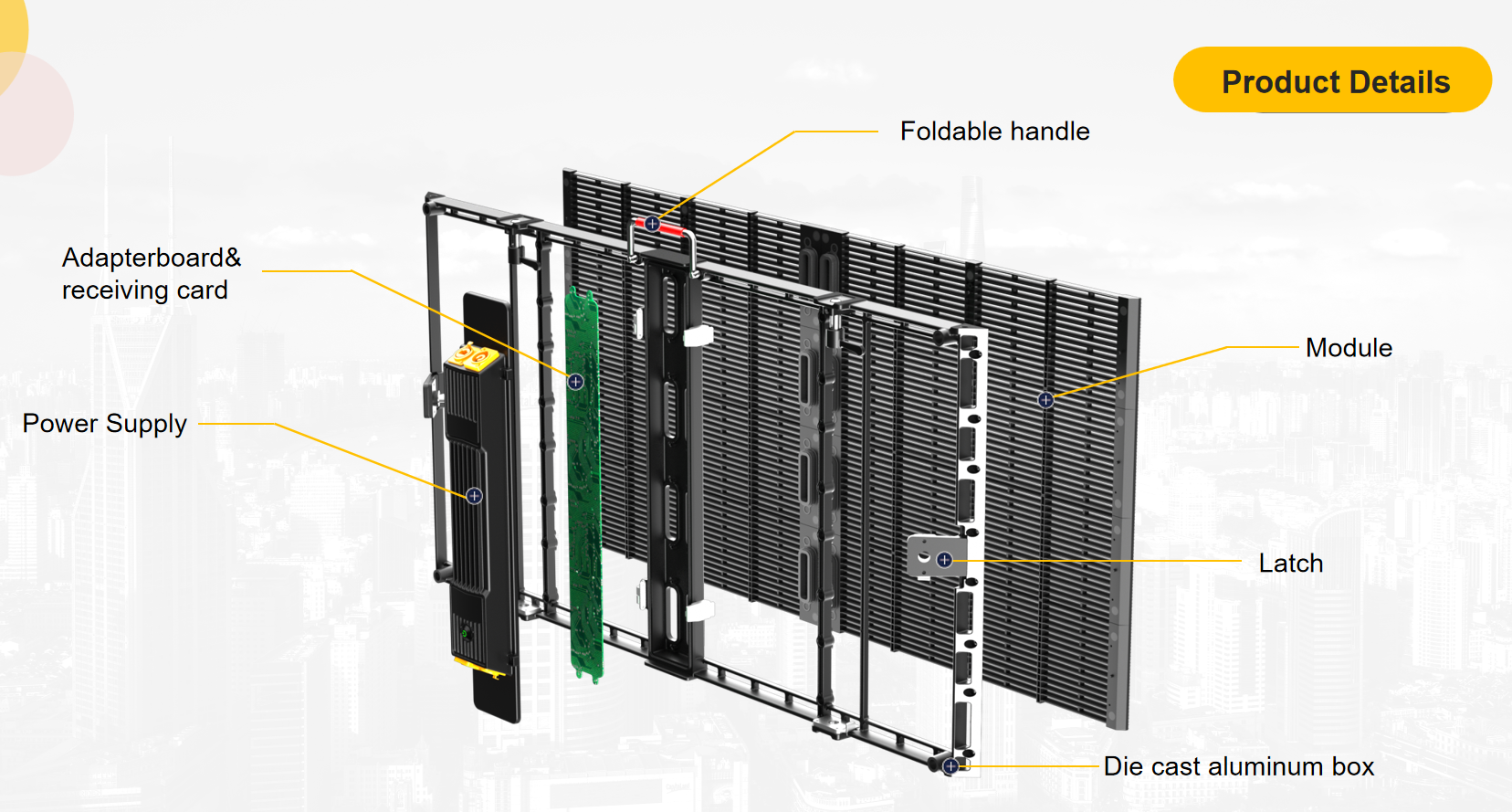

- Maintenance Method: Front or rear maintenance (power supply box
only supports rear maintenance)
- Pixel Configuration: 1R 1G 1B
- Operating Input Voltage: 4.5-5V
- Gray Scale: ≥14bits
- Brightness Adjustment: 256-level brightness control
Our Services
- 10+ years professional LED display manufacturing experience
- Fast delivery: 5-15 working days (adjustable)
- Wholesale pricing available
- OEM/ODM services
- Custom product solutions
Frequently Asked Questions
Q1. How does your technical support work?
Our experienced engineers (15+ years in industry) provide remote
support via video conference or TeamViewer, with optional on-site
guidance.
Q2. What installation options are available?
Wall mounting with metal structures or ceiling hanging
configurations.
Q3. Is there a minimum order quantity?
Low MOQ - we accept orders for individual modules or complete
screens.
Q4. What shipping methods do you offer?
Air freight, sea, and train transport options available based on
destination.
Q5. What are your payment terms?
50% deposit before production, 50% balance before shipment
(telegraphic transfer).
Q6. How do you ensure product quality?
Rigorous quality control from material inspection through
production, with 72+ hours aging tests for all modules and complete
screens.
Q7. How does your warranty work?
1-3 year warranty with free repair/exchange of defective parts
(one-way shipping included).
