Outdoor P5 P8 P10 Stadium Perimeter LED Display Ultra-Wide Viewing
Angles High Energy Efficiency and Low-Cost for Sports Venues
Parameters of Stadium Perimeter LED Display:
| Item | P5 | P6 | P8 | P10 |
| Pixel Configuration | SMD3535 | SMD2727 | SMD3535 | SMD3535 |
| Pixel Pitch(mm) | 5 | 6.67 | 8 | 10 |
| Module Resolution(dots) | 64x32 | 48x24 | 40x20 | 32x16 |
| Panel Resolution(dots) | 192x192 | 144x144 | 120x120 | 96x96 |
| Pixel Density(dots /m²) | 10000 | 22477 | 15625 | 10000 |
| Module Size(L x W x H)/(mm) | 320x160 | 320x160 | 320x160 | 320x160 |
| Panel Size(L x W x H)/( mm) | 960x960 | 960x960 | 960x960 | 960x960 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight(kg/panel) | 28.5 | 28.5 | 28.5 | 28.5 |
| Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Brightness(nit) | ＞5000 | ＞5000 | ＞6000 | ＞6000 |
| Viewing Angle(H/V°) | 140/140 | 140/140 | 140/140 | 140/140 |
| AC Power Input(V) | AC220±10% | AC220±10% | AC220±10% | AC220±10% |
| Max. AC Power Input(W/m²) | 950 | 880 | 850 | 850 |
| Avg. AC Power Input(W/m²) | 450 | 350 | 320 | 350 |
| Storage Temperature(ºC) | -40~60 | -40~60 | -40~60 | -40~60 |
| Working Temperature(ºC) | -20~50 | -20~50 | -20~50 | -20~50 |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Maintenance Types | Rear Maintenance | Rear Maintenance | Rear Maintenance | Rear Maintenance |
| Warranty | 3 years | 3 years | 3 years | 3 years |
Features of Stadium Perimeter LED Display:

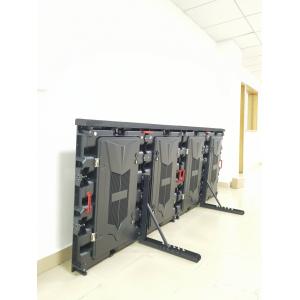

1. Ultra-Lightweight Cabinet
Weighs only 28.5kg—super easy to transport, install, assemble and
disassemble. Saves your labor costs significantly.
2. Sleek Cabinet Design
Lightweight with quick-lock fasteners for gap-free installation.
Humanized handle design makes cabinet movement effortless.
3. Independent Adjustable Support Structure
Rotatable and impact-resistant—stays stable even under strong
external force. Supports flexible angle adjustment
(60°/65°/70°/75°/80°/85°/90°) to fit on-site needs.
4. Soft Protective Mask Design
Sponge crash beam installed on top of the cabinet, effectively
reducing injury risks when athletes accidentally collide with the
display.
Advantages of Stadium Perimeter LED Display
1. Boost Advertising Revenue
Stadium LED perimeter displays deliver premium ad space for
sponsors during key events. Their dynamic, eye-catching visuals
enable creative campaigns that maximize brand exposure—directly
driving higher sponsorship fees and advertising revenue.
2. Amplify Audience Engagement
Vibrant, moving content on LED perimeter displays creates an
immersive atmosphere. It captures spectators’ attention in real
time, elevating their on-site experience and strengthening event
appeal.
3. Enhance Venue Prestige
Sleek, high-performance LED displays upgrade the stadium’s visual
aesthetics. They position the venue as modern and professional,
helping attract more high-profile events, teams, and audiences.
